A Pareto chart is a useful tool for identifying the key factors that contribute to a problem or issue. In the mold and welding industry, Pareto charts can help you pinpoint the main causes of defects, such as issues related to pressure or temperature. At, we offer a comprehensive Pareto chart template in XLSX format to help you analyze and improve your processes.

Understanding a Pareto Chart

A Pareto chart is a bar graph that displays the relative frequency or size of a set of problems in descending order of importance. It is designed to help you focus on the most significant factors affecting your process, as well as identify the critical few that contribute to the majority of the problems. By addressing the vital few factors, you can make significant improvements in your process efficiency and quality.

Using a Pareto Chart for Mold and Weld Defects

In the mold and welding industry, defects can occur due to a wide range of factors, such as improper temperature, pressure, or welding techniques. By analyzing the potential causes of defects using a Pareto chart, you can identify the primary factors contributing to the problem, and then prioritize corrective measures accordingly.

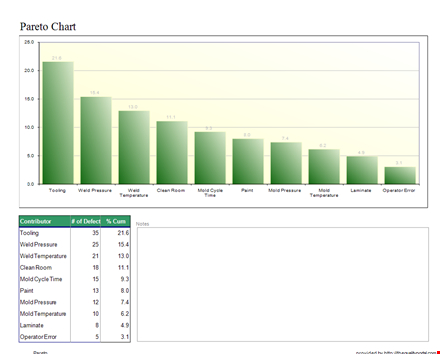

Our Pareto Chart Template

Our Pareto chart template is formatted to make it easy for you to input your data and analyze the results. It includes prebuilt charts and tables to help you identify critical factors that require your attention.

By using our Pareto chart template, you will be able to:

  • Input and organize your data, such as the number of defects or occurrences of a problem
  • Create a Pareto chart, which analyzes and displays the data in descending order of importance
  • Identify the "vital few" factors responsible for the majority of the problems or defects in the process
  • Brainstorm potential corrective measures for addressing the vital few factors
  • Track the effectiveness of the corrective measures and make adjustments as needed

Download Our Pareto Chart Template

If you are looking for a simple and effective way to analyze and improve your mold or welding process, our Pareto chart template can help. Visit to download our ready-to-use template in XLSX format and take the first step towards process improvement today!
